Product Introduction

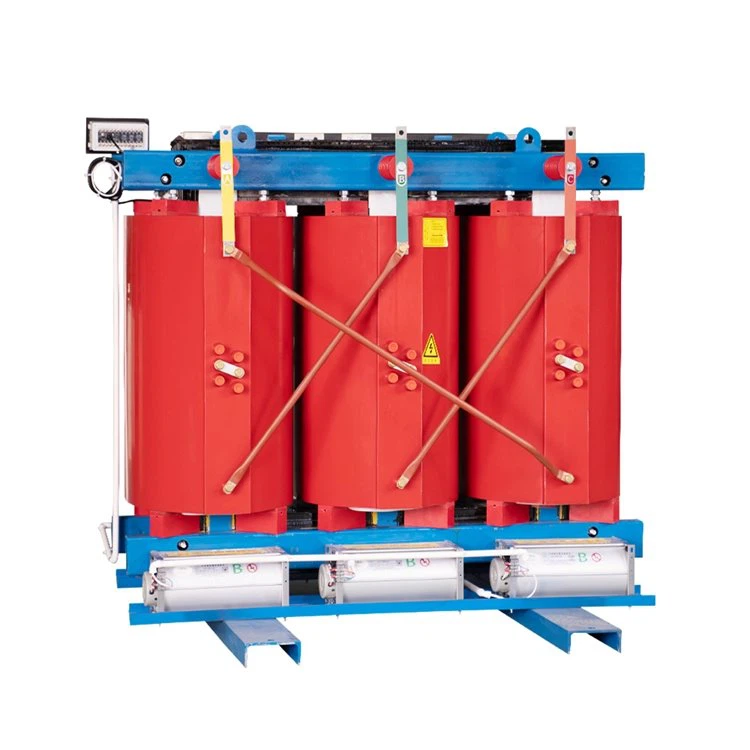

This 1500 KVA medium voltage dry type power transformer was delivered to South Africa in 2013. The rated power of the transformer is 1500 KVA. The primary voltage of the transformer is 6.6 KV and secondary voltage is 0.415 KV, the windings is made of copper. Cast resin technology provides excellent insulation and environmental protection, this together with the foil winding technology inside the resin offers the ultimate dry type transformer in terms of dielectric performance and short circuit withstand ability and ensures long term reliability for both distribution and special applications. cast resin transformers can be supplied with either aluminum or copper windings together with possibility of class F or class H insulation system, they can be designed to in-door or out-door installation with different enclosures.

We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!

Advantages

Fire resistant /Self-extinguishing(F1)

Environmental class(E2) and climatic class (C2)

From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling

Maintenance free

Environmental friendly ,＞90% of material recyclable

Temperature control system

Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.

Open circuit alarm and fault self-check alarm display and signal output.

3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.

Fans manual/auto control switch, timing start/stop, history data output.

4-20mA current output

RS485 Modbus communication protocol

Environment temperature measurement

Core temperature measurement

Scope of Supply

Product: resin cast dry type transformer

Voltage level: up to 35KV

Rating level: up to 20MVA

The transformer can be designed according to customer’s requirements

Technical Data Sheet

1500 KVA Dry Type Transformer specifications and data sheet

1500 KVA 6.6/0.415KV Transformer Manufacturing Process

Precautions for dry transformer Installation:

1. Proper installation and wiring

2. Proper installation location

3. Installation of protective housing

4. Pay attention to the choice of temperature control system

Advantages of dry type transformer:

1. Good fire performance, no flammable resin, no toxic gas, not easy to spontaneous combustion characteristics.

2. Low dissipation and low noise.

3. No pollution and no maintenance.

4. Good insulation, no partial discharge, strong lightning impact resistance.

FAQ

1. What standard do you follow?

IEC 60076 standard, and all other major international standard such as ANSI, CSA, UL, etc.

2. What package do you have for transformers?

Standard package with welded iron frame packed with ply wood boxes.

3. How long can I receive my transformers?

The shipping time from our port (shanghai or Ningbo) to your port is range from one week to one month, depend on the distance.
